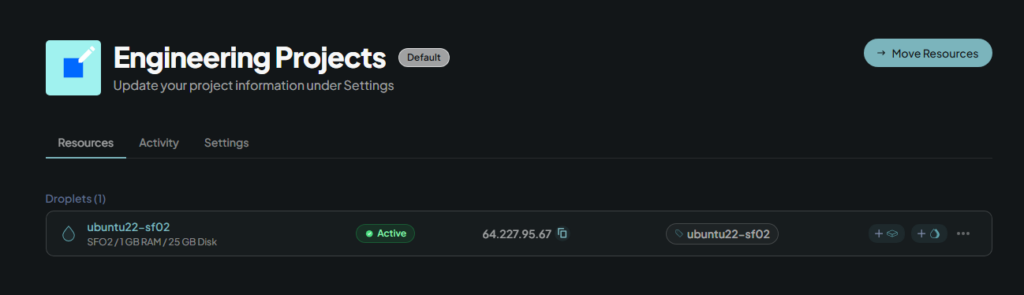

The cloud component of my home lab is an Ubuntu Linux server hosted in DigitalOcean that provides the Internet-facing and connectivity layer for the on-premises environment.

This WordPress site runs on an Ubuntu VM within the on-premises ESXi environment, with this DigitalOcean server providing its public-facing reverse proxy and secure connectivity.

Rather than serving as a single-purpose server, it combines secure administration, VPN connectivity, routing, reverse proxying, TLS termination, and several self-hosted services.

In practical terms, this environment allows me to practice integrating enterprise applications and services across cloud and on-premises security boundaries. It implements patterns commonly found in Azure and AWS, including Application and VPN Gateways, reverse proxying, TLS termination, centralized authentication, and controlled access to private services. This provides hands-on experience building hybrid architectures using IPsec, RADIUS, certificates, Active Directory, Microsoft Entra, and network segmentation.

The primary roles include:

Secure Linux administration
Site-to-site and remote-access VPN
Network routing and NAT
RADIUS authentication
NGINX reverse proxying and TLS termination
Self-hosted web applications
Integration with the on-premises infrastructure

Securing the Cloud Edge

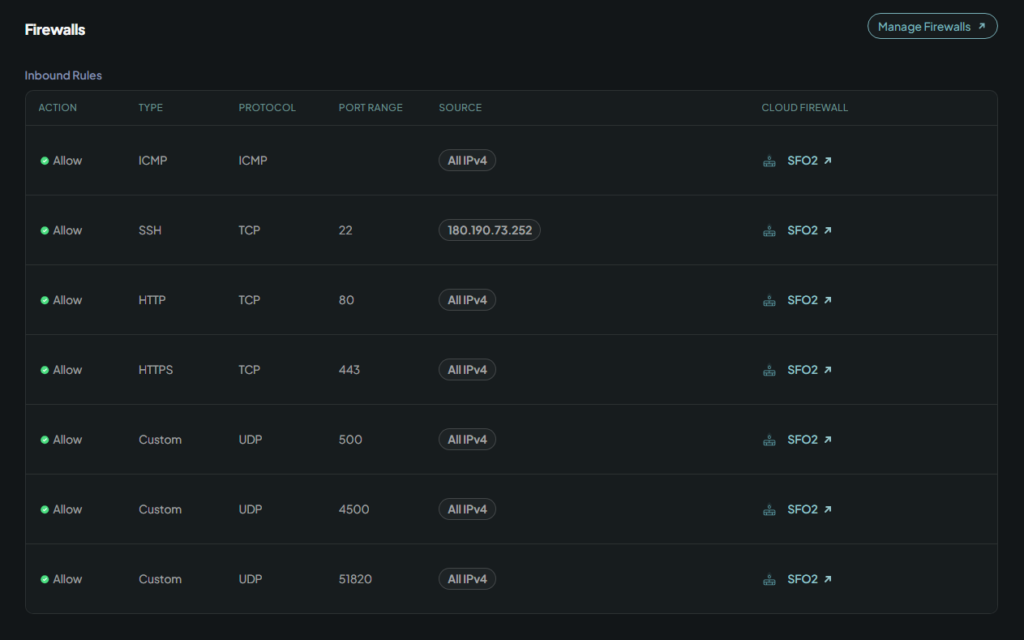

The server is protected using multiple layers rather than relying on a single firewall. The DigitalOcean Cloud Firewall which sits inside a defined VPC restricts which services can reach the host from the Internet.

Administrative SSH access is further restricted by disabling password authentication and requiring public-key authentication:

pubkeyauthentication yes
passwordauthentication no

This provides a simple but important security boundary: Internet exposure is controlled at the cloud edge, while administrative authentication is handled cryptographically at the operating-system level.

Secure Connectivity & VPN Services

A major role of the cloud server is providing secure connectivity between remote clients, the cloud environment, and the on-premises lab. The environment uses StrongSwan/IPsec, IKEv2, WireGuard, and RADIUS, with each technology serving a different purpose.

Site-to-Site Connectivity

StrongSwan establishes encrypted IPsec tunnels between the cloud infrastructure and the on-premises firewall environments. This allows private laboratory networks to communicate with the cloud without exposing those networks directly to the Internet.

Remote Access

StrongSwan also provides IKEv2 remote-access VPN connectivity. Remote clients authenticate using certificates and EAP/RADIUS, and authorized clients can receive access to the laboratory networks and, where appropriate, full-tunnel Internet routing.

WireGuard

WireGuard provides an additional lightweight VPN option for trusted remote clients. The cloud server acts as the WireGuard gateway and routes authorized clients toward internal resources or Internet egress.

RADIUS & Identity

RADIUS provides the authentication integration layer for network access.

In the broader lab environment, RADIUS can integrate network services with Active Directory/NPS, allowing centralized identity to participate in VPN and network authentication rather than maintaining independent credentials on every service.

The result is a layered connectivity architecture:

                    Cloud Ubuntu
                         │
              ┌──────────┼──────────┐
              │          │          │
           IPsec       IKEv2     WireGuard
              │          │          │
              └──────────┼──────────┘
                         │
                  Private Networks
                         │
                  On-Premises Lab
                         │
              ┌──────────┴──────────┐
              │                     │
           pfSense               Sophos
              │                     │
        Core Infrastructure    Security Testing

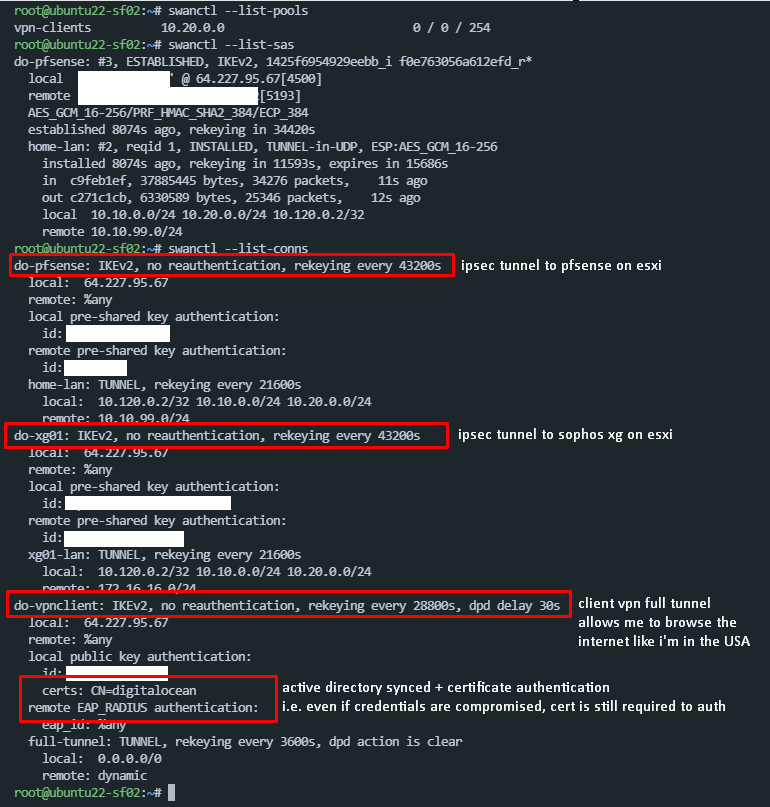

StrongSwan’s connection and security-association status provides operational visibility into the active IPsec infrastructure.

NGINX Reverse Proxy & Web Services

The cloud server also acts as the public-facing web layer. NGINX handles:

TLS termination
Virtual hosts
Reverse proxying
Public web applications
Routing requests to internal services

This allows selected applications to remain on private infrastructure while still being accessible through controlled public endpoints.

Internet
   │
   ▼
 HTTPS
   │
   ▼
 NGINX
   │
   ├── Local applications
   │
   └── Reverse proxy
           │
           ▼
      Private services

This creates a useful separation between the public application edge and the private application infrastructure.

Cloud ↔ On-Premises Integration

The cloud server effectively acts as the integration point between the Internet and the on-premises lab.

                         Internet
                            │
                            ▼
                  ┌──────────────────┐
                  │ DigitalOcean     │
                  │ Ubuntu Server    │
                  └────────┬─────────┘
                           │
             ┌─────────────┼─────────────┐
             │             │             │
            VPN          NGINX          SSH
             │             │
             │             └── Public Web
             │
             ▼
        On-Premises Lab
             │
       ┌─────┴─────┐
       │           │
    pfSense      Sophos
       │           │
   Core Lab    Security Lab
       │
   ┌───┼────┐
   │   │    │
 Windows Linux Applications

This architecture keeps the internal networks private while still allowing controlled access from the Internet and remote clients.

Infrastructure Services

Area	Technology	Role
Cloud	DigitalOcean	Infrastructure hosting
OS	Ubuntu Linux	Server platform
Security	Cloud Firewall	Internet edge filtering
Administration	SSH public-key authentication	Secure management
Site-to-site VPN	StrongSwan / IPsec	Cloud ↔ on-premises connectivity
Remote VPN	IKEv2	Remote client access
Lightweight VPN	WireGuard	Remote connectivity
Authentication	RADIUS	Centralized network authentication
Web	NGINX	TLS and reverse proxy
Application	PHP-FPM	Web application runtime
Services	FreshRSS	Self-hosted applications
Routing	Linux routing/NAT	Network integration
Automation	Git / shell / systemd	Infrastructure management

What This Demonstrates

This server gives the lab a practical cloud-to-on-premises integration layer rather than treating cloud and local infrastructure as separate environments.

The project demonstrates hands-on work with:

Linux server administration
Cloud infrastructure
Firewall configuration
SSH hardening
IPsec and IKEv2
WireGuard
RADIUS authentication
Network routing and NAT
NGINX
TLS
Reverse proxying
PHP-FPM
Self-hosted applications
Cloud/on-premises integration

The interesting part isn’t any individual service. It’s the way they work together to create a secure hybrid infrastructure environment.
